    Punching Type 2-7/8" ESP Cable Protectors For Control Lines

    Ask Lasest Price
    Brand Name : Tiptop
    Model Number : 2-3/8"
    Certification : ISO9001
    Price : USD/EURO/RMB
    Payment Terms : L/C, T/T
    Supply Ability : 1000 tons per month
    Delivery Time : one week
    • Product Details
    • Company Profile

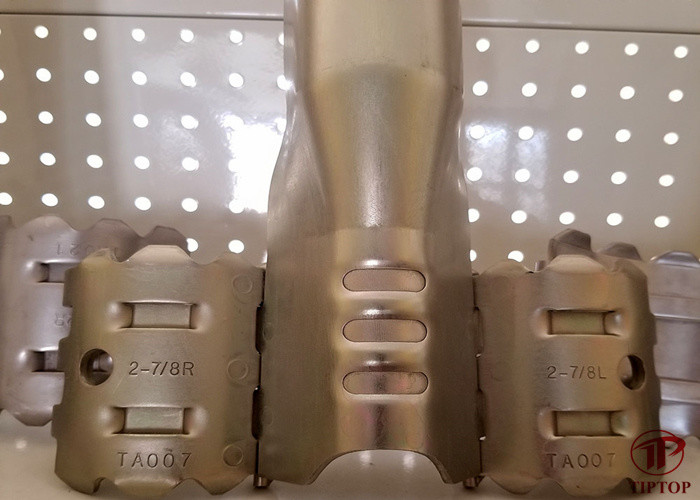

    Punching Type 2-7/8" ESP Cable Protectors For Control Lines

    2-7/8" ESP Cable Protectors Round/Flat


    We provide a series of special control wire clamps and protectors. The base of these control wire protectors can be made of carbon steel or stainless steel.


    Punching type cable protector:

    Punching cable protector is formed by a bolt mounted in the connecting tube, for a variety of cables, control lines, chemical injection lines, packaging line, widely used in cross-coupling, tubing, valve protection, completion, fixed , Workover and measure completion. It provides a e and efficient method, and underground cable transmission can be secured to the wellbore. These materials are stainless steel, carbon steel and other materials to meet the unique needs of customers. Site installation manually or hydraulic caliper caliper.


    Feature:

    Compact, applicable to any cross coupling connector

    Fast on-site installation

    Environmental protection

    Reusable and recyclable products


    Specifications:


    NO.DescriptionTube sizeCable typeCable size
    1Cable Protector 2-3/8R6-82-3/8"RoundΦ6-8mm
    2Cable Protector 2-3/8F11/342-3/8"Flat11mm SQUARE
    3Cable Protector 2-3/8R32-342-3/8"RoundΦ32-34mm
    4Cable Protector 2-7/8R6-82-7/8"RoundΦ6-8mm
    5Cable Protector 2-7/8R30-332-7/8"RoundΦ30-33mm
    6Cable Protector 2-7/8R34-372-7/8"RoundΦ34-37mm
    7Cable Protector 2-7/8F11/342-7/8"Flat11mm SQUARE
    8Cable Protector 2-7/8F16-19/562-7/8"Flat16-19mm SQUARE
    9Cable Protector 2-7/8F16-19/702-7/8"Flat16-19mm SQUARE
    10Cable Protector 3-1/2R6-83-1/2"RoundΦ6-8mm
    11Cable Protector 3-1/2R30-333-1/2"RoundΦ30-33mm
    12Cable Protector 3-1/2R34-373-1/2"RoundΦ34-37mm
    13Cable Protector 3-1/2R38-423-1/2"RoundΦ38-42mm
    14Cable Protector 3-1/2F11/343-1/2"Flat11mm SQUARE
    15Cable Protector 3-1/2F16-19/603-1/2"Flat16-19mm SQUARE
    16Cable Protector 3-1/2F19-23/703-1/2"Flat19--23mm SQUARE
    17Cable Protector 4-1/2R6-84-1/2"RoundΦ6-8mm
    18Cable Protector 4-1/2R34-374-1/2"RoundΦ34-37mm
    19Cable Protector 4-1/2R38-424-1/2"RoundΦ38-42mm
    20Cable Protector 4-1/2F11/344-1/2"Flat11mm SQUARE
    21Cable Protector 4-1/2F16-19/604-1/2"Flat16-19mm SQUARE
    22Cable Protector 4-1/2F19-23/604-1/2"Flat19--23mm SQUARE
    23Cable Protector 5-1/2R6-85-1/2"RoundΦ6-8mm
    24Cable Protector 5-1/2R34-375-1/2"RoundΦ34-37mm
    25Cable Protector 5-1/2R38-425-1/2"RoundΦ38-42mm
    26Cable Protector 5-1/2F11/345-1/2"Flat11mm SQUARE
    27Cable Protector 5-1/2F11-16/565-1/2"Flat11-16mm SQUARE
    28Cable Protector 5-1/2F16-19/70DUAL5-1/2"Flat19--23mm SQUARE
    29Cable Protector 7R6-87"RoundΦ6-8mm
    30Cable Protector 7F11/347"Flat11mm SQUARE

    Punching Type 2-7/8" ESP Cable Protectors For Control Lines


    FAQ


    Q1: Can you arrange the shipment?
    A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

    Q2: How long is your delivery time?
    A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


    Q3. Can you provide customize service?
    A: Yes.Pipes can be customized as per the customers' request.

    Q4. How to ensure the quality?
    A: Mill Test Certificate is supplied with shipment.
    If needed, a Third Party Inspection is acceptable.
