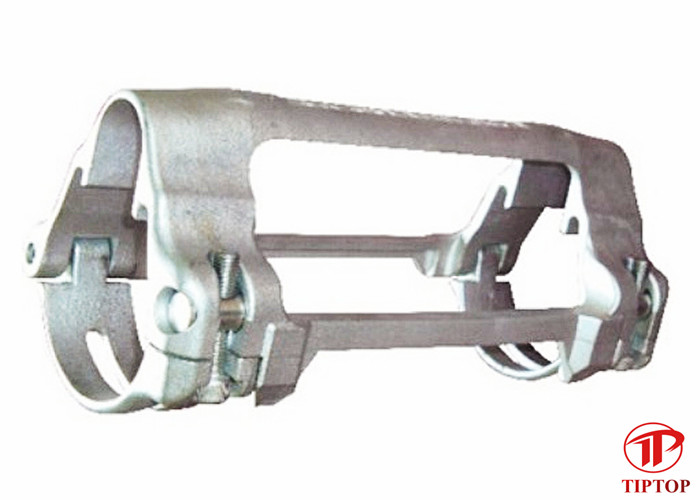

Cast Steel Round Or Flat Control Line Protector Φ32-34mm

    Buy cheap Cast Steel Round Or Flat Control Line Protector Φ32-34mm from wholesalers

    Buy cheap Cast Steel Round Or Flat Control Line Protector Φ32-34mm from wholesalers
    • Buy cheap Cast Steel Round Or Flat Control Line Protector Φ32-34mm from wholesalers
    • Buy cheap Cast Steel Round Or Flat Control Line Protector Φ32-34mm from wholesalers
    • Buy cheap Cast Steel Round Or Flat Control Line Protector Φ32-34mm from wholesalers
    • Buy cheap Cast Steel Round Or Flat Control Line Protector Φ32-34mm from wholesalers

    Cast Steel Round Or Flat Control Line Protector Φ32-34mm

    Ask Lasest Price
    Brand Name : Tiptop
    Model Number : 2-3/8"
    Certification : ISO9001
    Price : USD/EURO/RMB
    Payment Terms : L/C, T/T
    Supply Ability : 1000 tons per month
    Delivery Time : one week
    • Product Details
    • Company Profile

    Cast Steel Round Or Flat Control Line Protector Φ32-34mm

    Cast Steel of Downhole Pipeline and Cross Coupling ESP Cable Protectors Φ32-34mm


    ESP cable protector, also called control line protector, are used to protect any configuration of ESP cables, control lines, encapsulated bundles in the wellbore. There are channels to shield cables or lines when they transit across the tubing coupling to prevent from damage during installation or retrieval of completions.


    The ESP cable protector is made of carbon steel or stainless steel and is suitable for 2-7/8" to 7" O.D. tubing sizes. The control line protector is appropriated for flat, square and round cables and lines.


    Application:


    • ESP cable
    • Subsurface ety valves control line
    • Chemical injection line
    • Permanent Gauges
    • Intelligent Wells
    • Fiber Optic
    • Coiled tubing


    NO.

    Description

    Tube size

    Cable type

    Cable size

    1

    Cable Protector 2-3/8R6-8

    2-3/8"

    Round

    Φ6-8mm

    2

    Cable Protector 2-3/8F11/34

    2-3/8"

    Flat

    11mm SQUARE

    3

    Cable Protector 2-3/8R32-34

    2-3/8"

    Round

    Φ32-34mm

    4

    Cable Protector 2-7/8R6-8

    2-7/8"

    Round

    Φ6-8mm

    5

    Cable Protector 2-7/8R30-33

    2-7/8"

    Round

    Φ30-33mm

    6

    Cable Protector 2-7/8R34-37

    2-7/8"

    Round

    Φ34-37mm

    7

    Cable Protector 2-7/8F11/34

    2-7/8"

    Flat

    11mm SQUARE

    8

    Cable Protector 2-7/8F16-19/56

    2-7/8"

    Flat

    16-19mm SQUARE

    9

    Cable Protector 2-7/8F16-19/70

    2-7/8"

    Flat

    16-19mm SQUARE

    10

    Cable Protector 3-1/2R6-8

    3-1/2"

    Round

    Φ6-8mm

    11

    Cable Protector 3-1/2R30-33

    3-1/2"

    Round

    Φ30-33mm

    12

    Cable Protector 3-1/2R34-37

    3-1/2"

    Round

    Φ34-37mm

    13

    Cable Protector 3-1/2R38-42

    3-1/2"

    Round

    Φ38-42mm

    14

    Cable Protector 3-1/2F11/34

    3-1/2"

    Flat

    11mm SQUARE

    15

    Cable Protector 3-1/2F16-19/60

    3-1/2"

    Flat

    16-19mm SQUARE

    16

    Cable Protector 3-1/2F19-23/70

    3-1/2"

    Flat

    19--23mm SQUARE

    17

    Cable Protector 4-1/2R6-8

    4-1/2"

    Round

    Φ6-8mm

    18

    Cable Protector 4-1/2R34-37

    4-1/2"

    Round

    Φ34-37mm

    19

    Cable Protector 4-1/2R38-42

    4-1/2"

    Round

    Φ38-42mm

    20

    Cable Protector 4-1/2F11/34

    4-1/2"

    Flat

    11mm SQUARE

    21

    Cable Protector 4-1/2F16-19/60

    4-1/2"

    Flat

    16-19mm SQUARE

    22

    Cable Protector 4-1/2F19-23/60

    4-1/2"

    Flat

    19--23mm SQUARE

    23

    Cable Protector 5-1/2R6-8

    5-1/2"

    Round

    Φ6-8mm

    24

    Cable Protector 5-1/2R34-37

    5-1/2"

    Round

    Φ34-37mm

    25

    Cable Protector 5-1/2R38-42

    5-1/2"

    Round

    Φ38-42mm

    26

    Cable Protector 5-1/2F11/34

    5-1/2"

    Flat

    11mm SQUARE

    27

    Cable Protector 5-1/2F11-16/56

    5-1/2"

    Flat

    11-16mm SQUARE

    28

    Cable Protector 5-1/2F16-19/70DUAL

    5-1/2"

    Flat

    19--23mm SQUARE

    29

    Cable Protector 7R6-8

    7"

    Round

    Φ6-8mm

    30

    Cable Protector 7F11/34

    7"

    Flat

    11mm SQUARE


    Note: We can provide specific design to meet strict technological and quality.


    Cast Steel Round Or Flat Control Line Protector Φ32-34mm


    FAQ


    Q1: Can you arrange the shipment?
    A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

    Q2: How long is your delivery time?
    A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


    Q3. Can you provide customize service?
    A: Yes.Pipes can be customized as per the customers' request.

    Q4. How to ensure the quality?
    A: Mill Test Certificate is supplied with shipment.
    If needed, a Third Party Inspection is acceptable.
