    Customized ESP Downhole Cable Protectors 2 3/8"-7"

    Ask Lasest Price
    Brand Name : Tiptop
    Model Number : 2-3/8"
    Certification : ISO9001
    Price : USD/EURO/RMB
    Payment Terms : L/C, T/T
    Supply Ability : 1000 tons per month
    Delivery Time : one week
    • Product Details
    • Company Profile

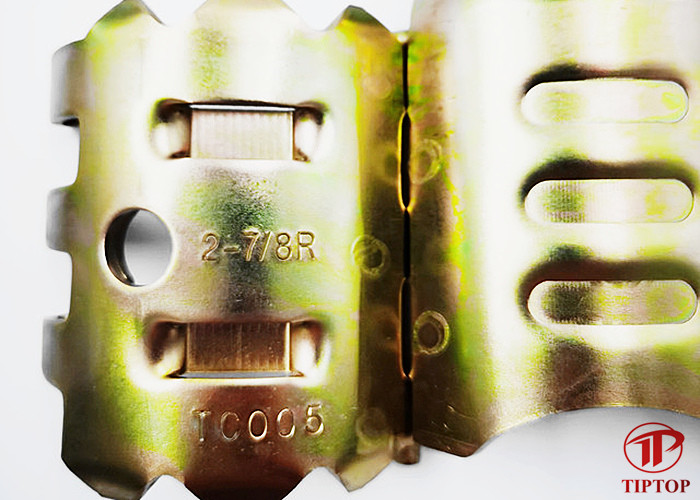

    Customized ESP Downhole Cable Protectors 2 3/8"-7"

    Customized ESP Cable Protectors 2 3/8"-7"


    It is used to fix and protect downhole cables on the outer wall of the tubing, especially to prevent the cable from eccentric wear at the joint position. The specifications and models can be customized according to the tubing size, and the material selection can be made of different materials according to the medium.


    Applications:


    ESP cable

    Downhole ety valve control pipeline

    Chemical injection line

    Coiled tube

    Permanent gauge

    Smart well

    optical fiber


    Features:


    Name: Pipe Stabilizer
    Suitable for pipe pf ID from 2-3/8 to 7''
    Other products: Sucker rod stabilizer

    Product name: pipe stabilizer, sucker rod stabilizer


    NO.

    Description

    Tube size

    Cable type

    Cable size

    1

    Cable Protector 2-3/8R6-8

    2-3/8"

    Round

    Φ6-8mm

    2

    Cable Protector 2-3/8F11/34

    2-3/8"

    Flat

    11mm SQUARE

    3

    Cable Protector 2-3/8R32-34

    2-3/8"

    Round

    Φ32-34mm

    4

    Cable Protector 2-7/8R6-8

    2-7/8"

    Round

    Φ6-8mm

    5

    Cable Protector 2-7/8R30-33

    2-7/8"

    Round

    Φ30-33mm

    6

    Cable Protector 2-7/8R34-37

    2-7/8"

    Round

    Φ34-37mm

    7

    Cable Protector 2-7/8F11/34

    2-7/8"

    Flat

    11mm SQUARE

    8

    Cable Protector 2-7/8F16-19/56

    2-7/8"

    Flat

    16-19mm SQUARE

    9

    Cable Protector 2-7/8F16-19/70

    2-7/8"

    Flat

    16-19mm SQUARE

    10

    Cable Protector 3-1/2R6-8

    3-1/2"

    Round

    Φ6-8mm

    11

    Cable Protector 3-1/2R30-33

    3-1/2"

    Round

    Φ30-33mm

    12

    Cable Protector 3-1/2R34-37

    3-1/2"

    Round

    Φ34-37mm

    13

    Cable Protector 3-1/2R38-42

    3-1/2"

    Round

    Φ38-42mm

    14

    Cable Protector 3-1/2F11/34

    3-1/2"

    Flat

    11mm SQUARE

    15

    Cable Protector 3-1/2F16-19/60

    3-1/2"

    Flat

    16-19mm SQUARE

    16

    Cable Protector 3-1/2F19-23/70

    3-1/2"

    Flat

    19--23mm SQUARE

    17

    Cable Protector 4-1/2R6-8

    4-1/2"

    Round

    Φ6-8mm

    18

    Cable Protector 4-1/2R34-37

    4-1/2"

    Round

    Φ34-37mm

    19

    Cable Protector 4-1/2R38-42

    4-1/2"

    Round

    Φ38-42mm

    20

    Cable Protector 4-1/2F11/34

    4-1/2"

    Flat

    11mm SQUARE

    21

    Cable Protector 4-1/2F16-19/60

    4-1/2"

    Flat

    16-19mm SQUARE

    22

    Cable Protector 4-1/2F19-23/60

    4-1/2"

    Flat

    19--23mm SQUARE

    23

    Cable Protector 5-1/2R6-8

    5-1/2"

    Round

    Φ6-8mm

    24

    Cable Protector 5-1/2R34-37

    5-1/2"

    Round

    Φ34-37mm

    25

    Cable Protector 5-1/2R38-42

    5-1/2"

    Round

    Φ38-42mm

    26

    Cable Protector 5-1/2F11/34

    5-1/2"

    Flat

    11mm SQUARE

    27

    Cable Protector 5-1/2F11-16/56

    5-1/2"

    Flat

    11-16mm SQUARE

    28

    Cable Protector 5-1/2F16-19/70DUAL

    5-1/2"

    Flat

    19--23mm SQUARE

    29

    Cable Protector 7R6-8

    7"

    Round

    Φ6-8mm

    30

    Cable Protector 7F11/34

    7"

    Flat

    11mm SQUARE


    Note: We can provide specific design to meet strict technological and quality.


    Customized ESP Downhole Cable Protectors 2 3/8"-7"


    FAQ


    Q1: Can you arrange the shipment?
    A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

    Q2: How long is your delivery time?
    A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


    Q3. Can you provide customize service?
    A: Yes.Pipes can be customized as per the customers' request.

    Q4. How to ensure the quality?
    A: Mill Test Certificate is supplied with shipment.
    If needed, a Third Party Inspection is acceptable.
