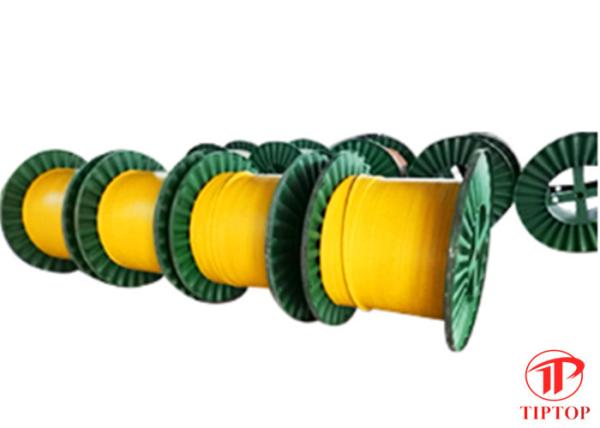

Encapsulated hydraulic control line for subsea ety valves

The encapsulated tubing are designed to protect the (duplex) stainless steel tubing coils free from various harsh corrosion environments. Tube will be Encapsulated with high performance thermoplastic or elastomer materials functional in either 150C or 200C operating temperature environments.The tube size and encapsulation material can be made as per requirement, Flatpack is also available.

The encapsulation is used as a protective layer for keeping metal tubing from various aggressive chemical environments. And to enhancing the corrosion resistance performance of the entire coiled tubing.

Encapsulation materials:Santoprene,F40;F46;FEP (Fluorinated Ethylene Propylene);PVC (Polyvinyl chloride);Nylon Encapsulated etc..

Available Encapsulation shapes: Round Type, Square type, Flatpack

Coiled tubing is available in lengths from 100 feet (30 meters) to 100,000 feet (30,000 meters). Long lengths are possible by utilizing a combination of strip splice and tube-to-tube orbital welds.

Diameters range from .250 inches (6.35 millimeters) to 1.75 inches (44.45 millimeters), with wall thicknesses up to .160 inches (4 millimeters).

Specialized features can include cold working for higher yield strength, intrusion-free orbital welds and a minimized number of orbital welds. Tubing can be coiled onto IPPC-certified wood or metal reels customized to the users’ specifications.

Applications include:

Capillary Coiled Stainless Steel Tubing for chemical injection

Bare and encapsulated hydraulic control line coiled stainless steel tubing for subsea ety valves

Velocity strings, work strings, and steel tube umbilicals

Geothermal Coiled Stainless Steel Tubing

Specifications

1/8"*0.035"

1/4"*0.035"

1/4"*0.049"

1/4"*0.065"

3/8"*0.035"

3/8"*0.049"

3/8"*0.065"

1/2"*0.035"

1/2"*0.049"

1/2"*0.065"

Other sizes on request

We welcome to your contact!

With the leading direction of producing High pressure extra long stainless steel control line tube(stainless steel coiled tubes), TIPTOP has become a high-tech industrial company integrating domestic research and development, production and sales. The company successfully developed a series of stainless steel testing cables in 2000. In recent years, the company has been committed to the research and development of duplex steel and nickel alloy control lines, and has been widely approved in the international market.

The company covers an area of 20,000 square meters and a building area of 12,000 square meters. The company has several stainless steel tube production lines, tube making units, tube drawing units, well-type electric furnaces, online vacuum light furnaces and other production equipment. The company also has a quality inspection center that meets the national stainless steel tube quality inspection requirements. The quality inspection center has a 300Mpa hydraulic test machine, tensile test bench, Vickers hardness tester, 500°C temperature resistance test furnace, eddy current flaw detector and a series of stainless steel products. Testing and inspection equipment to ensure the reliability and stability of the chemical and physical properties of stainless steel products.　

The company annually produces more than 3,000 tons of stainless steel control lines and other products, sales marked covers both domestic and overseas, for domestic, we are network-enterprise company of CNOOC, Petro China and Sinopec, as for international,it has been widely used in Middle East, Southeast Asia, South America, Australia and so on.　

On the premise of improving the quality of its own brand products, the company has continuously increased the research and development of new products, and has cooperated and actively invested with many domestic universities and scientific research institutions. In recent years, the company has passed the certifications of CCS, GL, DNV and other classification societies.

With our support,you will have:

1. Technical data, technical guidance and training for free
2. Professional engineer to the site for tracking service
3. "just-in-time supply"(that is, supply at any time according to the actual demand of customer), in this way customers achieve zero inventory, maximize profits.
4. Most favorable offer,we take "taking small profits" as the principle.
5. 100% qualified product,Our company will strictly follow the requirements of relevant technical standards , grasp various links of production, and ensure product performance .
6. sufficient after sales services.

We are looking forward to developing business with friends from home and abroad on the basis of equality and mutual benefits!welcoming your enquiries!
