    PVC Cover Cold Drawn Seamless SS316L 4 Core Coiled Tubing

    Ask Lasest Price
    Brand Name : Tiptop
    Model Number : PVC
    Certification : ISO 9001
    Price :
    Payment Terms : L/C, T/T,
    Supply Ability : 1000 TONS PER MONTH
    Delivery Time : ONE WEEL
    • Product Details
    • Company Profile

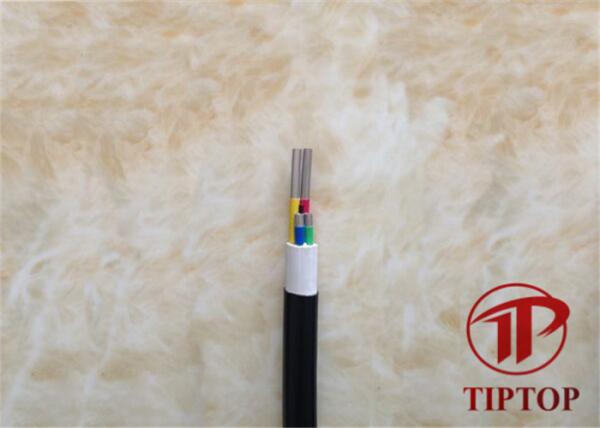

    PVC Cover Cold Drawn Seamless SS316L 4 Core Coiled Tubing

    316L Stainless Steel 4 Core Coiled Tubing


    The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. They are widely used for pneumatic and hydraulic remote control, measuring and monitoring systems. Materials are ASTM TP316/ 316L, TP304/304L. Each individual tube is PVC sheathed in a different color for easy identification and protection purposes . The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.


    The products are made of high quality stainless steel raw materials and jackets and fillers produced in accordance with ROHS environmental protection directives.lt has the characteristics of pressure resistance, wear resistance, corrosion resistance, anti-aging, flame retardant and environmental protection. It is suitable for a variety of harsh climatic conditions and has a high ety factor.


    PVC Cover Cold Drawn Seamless SS316L 4 Core Coiled Tubing

    Product Characteristics


    • Customized to avoid waste
    • Positioned as high quality products to ensure absolutely e
    • Easy to lay, labor saving
    • Superior performance, free of maintenance
    • High-tech technology and extensive application

    Specification:


    Material of Tube

    Tube OD

    Wall Thickness

    Cores

    Standard Length of Tube

    ASTM TP 304/304L/316/316L

    6/8/10/12/14/15mm

    0.8/1.0/1.2/1.5/2.0mm

    1~6core

    Seamless

    Welded

    50~160

    200~800


    Technical parameters:


    O.D

    (mm)

    No.of Cores

    Sheath Thickness

    (mm)

    Overall Diameter

    (Approx, mm)

    Bending Radius

    (Minimum mm)

    Weight/kg/m

    0.18

    1.0

    1.2

    1.5

    2.0

    6

    1

    1

    8

    64

    0.18

    0.21

    -

    -


    2

    2

    19

    152

    0.67

    0.71

    -

    -


    4

    2

    23

    184

    0.96

    1.04

    -

    -


    6

    2

    28

    224

    1.25

    1.38

    -

    -


    8

    1

    1

    10

    80

    0.25

    0.28

    0.31

    -


    2

    2

    23

    192

    0.83

    0.89

    0.95

    -


    4

    2

    28

    224

    1.2

    1.33

    1.45

    -


    6

    2

    33

    272

    1.82

    2

    2.17

    -


    10

    1

    1

    12

    96

    0.3

    0.34

    0.38

    0.43


    2

    2

    28

    224

    1.1

    1.18

    1.26

    1.37


    4

    2

    34

    272

    1.8

    1.97

    2.13

    2.35


    6

    2

    39

    320

    2.15

    2.4

    2.63

    2.96


    12

    1

    1

    14

    112

    -

    0.41

    0.45

    0.53


    2

    2

    34

    272

    -

    1.38

    1.48

    1.62


    4

    2

    39

    312

    -

    2.37

    2.57

    2.85


    6

    2

    48

    384

    -

    3

    3.29

    3.71


    14

    1

    1

    16

    128

    -

    -

    -

    0.61

    0.74

    2

    2

    39

    312

    -

    -

    -

    3

    3.26

    15

    1

    1

    17

    136

    -

    -

    -

    0.64

    0.79

    2

    2

    39

    312

    -

    -

    -

    3.08

    3.36


    Product Standard:


    ASTM A269/A269M Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

    ASTM A312/A312M Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes


    Where the multi-core coiled tubing used ?

    • Control tubing in oil and gas well

    • Instrument tubing

    • Chemicl injection tubing line

    • Pre-insulated tubing

    • Electric heating or steam heating tubing line

    • Hater tubing line
