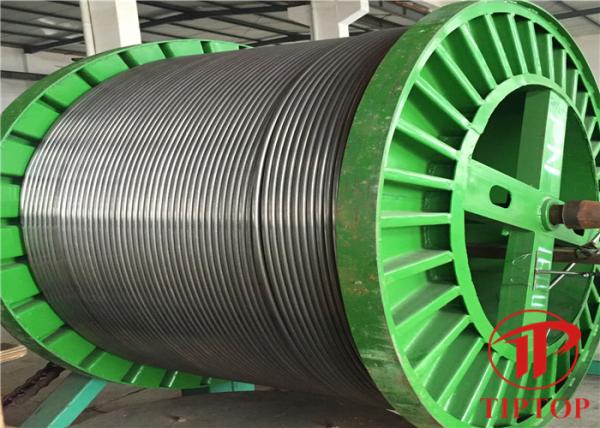

High Strength API 5ST Coiled Tubing for oil and gas well service

Tiptop supplys varieties of coiled tubings that meet the highest industry specifications. Our products conform to API 5ST Standard and other related standards.

Our conventional coiled tubing raw material has low content of sulfur and phosphorus, suitable mechanical properties, uniform microstructure, the flexion ratio of steel coil is lower than 0.80, and the strength performance difference of different parts is within 50MPa. All mechanical properties comply with API Spec 5STStandard and have excellent fatigue resistance.

The steel grade and size information covered are as follows:

Type: Conventional coiled tubing(CT)

Advantages: high-strength, excellent fatigue resistance.

Reference material: CT70, CT80, CT90, CT100, CT110

Standard: API Spec 5ST

OD: 3/4 " to 3 1/2" (19.1 mm to 88.9 mm)

Thickness: 0.075 " to 0.3" (1.9mm~7.6mm)

The dimensions can be customized according to API Spec 5ST or user requirements.

Users can choose the required material and steel grade according to the operating conditions.

Chemical composition requirements for carbon steel low alloy steel coiled tubing

Mechanical properties of carbon steel and low alloy steel coiled tubing

With the leading direction of producing High pressure extra long stainless steel control line tube(stainless steel coiled tubes), TIPTOP has become a high-tech industrial company integrating domestic research and development, production and sales. The company successfully developed a series of stainless steel testing cables in 2000. In recent years, the company has been committed to the research and development of duplex steel and nickel alloy control lines, and has been widely approved in the international market.

The company covers an area of 20,000 square meters and a building area of 12,000 square meters. The company has several stainless steel tube production lines, tube making units, tube drawing units, well-type electric furnaces, online vacuum light furnaces and other production equipment. The company also has a quality inspection center that meets the national stainless steel tube quality inspection requirements. The quality inspection center has a 300Mpa hydraulic test machine, tensile test bench, Vickers hardness tester, 500°C temperature resistance test furnace, eddy current flaw detector and a series of stainless steel products. Testing and inspection equipment to ensure the reliability and stability of the chemical and physical properties of stainless steel products.　

The company annually produces more than 3,000 tons of stainless steel control lines and other products, sales marked covers both domestic and overseas, for domestic, we are network-enterprise company of CNOOC, Petro China and Sinopec, as for international,it has been widely used in Middle East, Southeast Asia, South America, Australia and so on.　

On the premise of improving the quality of its own brand products, the company has continuously increased the research and development of new products, and has cooperated and actively invested with many domestic universities and scientific research institutions. In recent years, the company has passed the certifications of CCS, GL, DNV and other classification societies.

With our support,you will have:

1. Technical data, technical guidance and training for free
2. Professional engineer to the site for tracking service
3. "just-in-time supply"(that is, supply at any time according to the actual demand of customer), in this way customers achieve zero inventory, maximize profits.
4. Most favorable offer,we take "taking small profits" as the principle.
5. 100% qualified product,Our company will strictly follow the requirements of relevant technical standards , grasp various links of production, and ensure product performance .
6. sufficient after sales services.

We are looking forward to developing business with friends from home and abroad on the basis of equality and mutual benefits!welcoming your enquiries!
