    2 3/8 " Stailess Steel Mid Joint Cross Coupling Protectors

    Ask Lasest Price
    Brand Name : Tiptop
    Model Number : 2-3/8"
    Certification : ISO9001
    Price : USD/EURO/RMB
    Payment Terms : L/C, T/T
    Supply Ability : As per your request
    Delivery Time : one week
    • Product Details
    • Company Profile

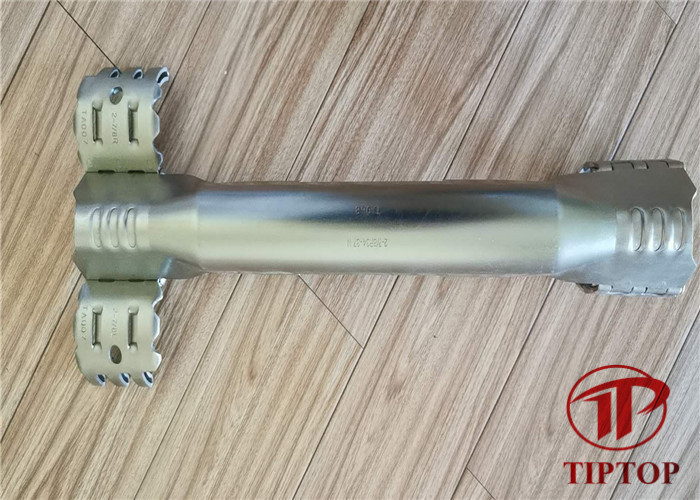

    2 3/8 " Stailess Steel Mid Joint Cross Coupling Protectors

    2 3 / 8 " stailess steel Cross-coupling protectors and mid-joint protectors


    Cross-coupling protectors and mid-joint protectors are designed to Configured for flat cables, round cables or square cables, which is also applicable for chemical injection lines, umbilicals etc.which is manufactured of low carbon steel or stainless steel,suitable for API tubing sizes from 2 3/8" to 7",


    Application:


    • ESP cable
    • Subsurface ety valves control line
    • Chemical injection line
    • Permanent Gauges
    • Intelligent Wells
    • Fiber Optic
    • Coiled tubing


    Punching cable protectors are formed by bolt mounted in the connection pipe, for a variety of cables, control lines, chemical injection lines, encapsulation lines and etc, widely applied on cross coupling, tubing, ety valve protection, completions, fixing, well repair and gauge completions. It provides a e and quick way of conveying and securing downhole cables into well bore. The materials are stainless steel, carbon steel and other materials for client’s unique needs. A hand caliper or hydraulic caliper is needed for field installation.


    Features:


    • Banding Straps-Banding straps are used for securing a bare control line to the tubing for small tubing sizes in shallow set applications.

    • Offset Clamps-Two Piece Design-the offset clamps are designed to protect control lines bypassing the SCSSV in deep set and horizontal applications. The rugged stamped design is available for securing single control lines or multiples encapsulated buddles. These protectors are assembled using a wedge pin which ensures reliable clamping during the life of the well.

    • Offset Clamps-One-Piece Design-these offset clamps are also designed to protect the control lines bypassing the SCSSV in deep set and horizontal applications. The forged design accommodates a wide range of bypass possibilities while providing reliable protection for the life of the well.

    Eccentric Protectors-The eccentric control line protectors which are used integral to the SCSSV assembly offer the most rugged solution for bypass protection. The eccentric protectors are specifically designed to meet the application requirements for control line bypass and casing size. The eccentric OD of the protectors ensures the control line is protected while running along the SCSSV.


    Specifications:


    NO.

    Description

    Tube size

    Cable type

    Cable size

    1

    Cable Protector 2-3/8R6-8

    2-3/8"

    Round

    Φ6-8mm

    2

    Cable Protector 2-3/8F11/34

    2-3/8"

    Flat

    11mm SQUARE

    3

    Cable Protector 2-3/8R32-34

    2-3/8"

    Round

    Φ32-34mm

    4

    Cable Protector 2-7/8R6-8

    2-7/8"

    Round

    Φ6-8mm

    5

    Cable Protector 2-7/8R30-33

    2-7/8"

    Round

    Φ30-33mm

    6

    Cable Protector 2-7/8R34-37

    2-7/8"

    Round

    Φ34-37mm

    7

    Cable Protector 2-7/8F11/34

    2-7/8"

    Flat

    11mm SQUARE

    8

    Cable Protector 2-7/8F16-19/56

    2-7/8"

    Flat

    16-19mm SQUARE

    9

    Cable Protector 2-7/8F16-19/70

    2-7/8"

    Flat

    16-19mm SQUARE

    10

    Cable Protector 3-1/2R6-8

    3-1/2"

    Round

    Φ6-8mm

    11

    Cable Protector 3-1/2R30-33

    3-1/2"

    Round

    Φ30-33mm

    12

    Cable Protector 3-1/2R34-37

    3-1/2"

    Round

    Φ34-37mm

    13

    Cable Protector 3-1/2R38-42

    3-1/2"

    Round

    Φ38-42mm

    14

    Cable Protector 3-1/2F11/34

    3-1/2"

    Flat

    11mm SQUARE

    15

    Cable Protector 3-1/2F16-19/60

    3-1/2"

    Flat

    16-19mm SQUARE

    16

    Cable Protector 3-1/2F19-23/70

    3-1/2"

    Flat

    19--23mm SQUARE

    17

    Cable Protector 4-1/2R6-8

    4-1/2"

    Round

    Φ6-8mm

    18

    Cable Protector 4-1/2R34-37

    4-1/2"

    Round

    Φ34-37mm

    19

    Cable Protector 4-1/2R38-42

    4-1/2"

    Round

    Φ38-42mm

    20

    Cable Protector 4-1/2F11/34

    4-1/2"

    Flat

    11mm SQUARE

    21

    Cable Protector 4-1/2F16-19/60

    4-1/2"

    Flat

    16-19mm SQUARE

    22

    Cable Protector 4-1/2F19-23/60

    4-1/2"

    Flat

    19--23mm SQUARE

    23

    Cable Protector 5-1/2R6-8

    5-1/2"

    Round

    Φ6-8mm

    24

    Cable Protector 5-1/2R34-37

    5-1/2"

    Round

    Φ34-37mm

    25

    Cable Protector 5-1/2R38-42

    5-1/2"

    Round

    Φ38-42mm

    26

    Cable Protector 5-1/2F11/34

    5-1/2"

    Flat

    11mm SQUARE

    27

    Cable Protector 5-1/2F11-16/56

    5-1/2"

    Flat

    11-16mm SQUARE

    28

    Cable Protector 5-1/2F16-19/70DUAL

    5-1/2"

    Flat

    19--23mm SQUARE

    29

    Cable Protector 7R6-8

    7"

    Round

    Φ6-8mm

    30

    Cable Protector 7F11/34

    7"

    Flat

    11mm SQUARE


    Note: We can provide specific design to meet strict technological and quality.
