3 1/2 " Stamping Control Line ESP Cable Protectors

    Buy cheap 3 1/2 " Stamping Control Line ESP Cable Protectors from wholesalers

    Buy cheap 3 1/2 " Stamping Control Line ESP Cable Protectors from wholesalers
    • Buy cheap 3 1/2 " Stamping Control Line ESP Cable Protectors from wholesalers
    • Buy cheap 3 1/2 " Stamping Control Line ESP Cable Protectors from wholesalers

    3 1/2 " Stamping Control Line ESP Cable Protectors

    Ask Lasest Price
    Brand Name : Tiptop
    Model Number : 3 1/2"
    Certification : ISO9001
    Price : USD/EURO/RMB
    Payment Terms : L/C, T/T
    Supply Ability : As per your request
    Delivery Time : one week
    • Product Details
    • Company Profile

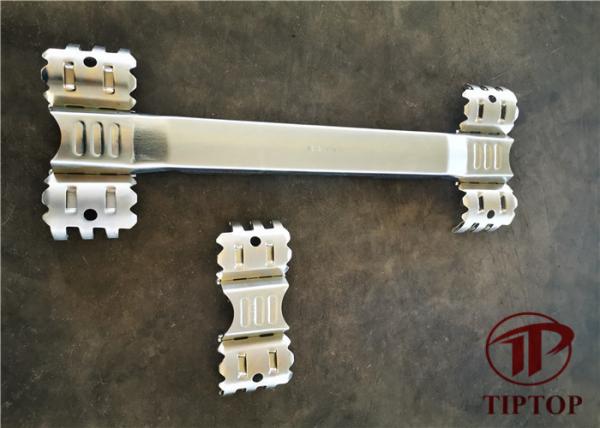

    3 1/2 " Stamping Control Line ESP Cable Protectors

    3 1 / 2 " Stamping type ESP cable protectors and control line protectors


    Cross-coupling protectors and mid-joint protectors are designed to Configured for flat cables, round cables or square cables, which is also applicable for chemical injection lines, umbilicals etc.which is manufactured of low carbon steel or stainless steel,suitable for API tubing sizes from 2 3/8" to 7".


    ESP cable protectors and control line protectors are used to protect any configuration of ESP cables, control lines or encapsulated lines in the wellbore. Channels are designed to shield cables or lines as they transit across the tubing coupling to prevent from damage during installation or retrieval of completions. Field installation is quick and simple using hydraulic driven installation tools.


    3 1/2 " Stamping Control Line ESP Cable Protectors


    Specifications:


    NO.

    Description

    Tube size

    Cable type

    Cable size

    1

    Cable Protector 2-3/8R6-8

    2-3/8"

    Round

    Φ6-8mm

    2

    Cable Protector 2-3/8F11/34

    2-3/8"

    Flat

    11mm SQUARE

    3

    Cable Protector 2-3/8R32-34

    2-3/8"

    Round

    Φ32-34mm

    4

    Cable Protector 2-7/8R6-8

    2-7/8"

    Round

    Φ6-8mm

    5

    Cable Protector 2-7/8R30-33

    2-7/8"

    Round

    Φ30-33mm

    6

    Cable Protector 2-7/8R34-37

    2-7/8"

    Round

    Φ34-37mm

    7

    Cable Protector 2-7/8F11/34

    2-7/8"

    Flat

    11mm SQUARE

    8

    Cable Protector 2-7/8F16-19/56

    2-7/8"

    Flat

    16-19mm SQUARE

    9

    Cable Protector 2-7/8F16-19/70

    2-7/8"

    Flat

    16-19mm SQUARE

    10

    Cable Protector 3-1/2R6-8

    3-1/2"

    Round

    Φ6-8mm

    11

    Cable Protector 3-1/2R30-33

    3-1/2"

    Round

    Φ30-33mm

    12

    Cable Protector 3-1/2R34-37

    3-1/2"

    Round

    Φ34-37mm

    13

    Cable Protector 3-1/2R38-42

    3-1/2"

    Round

    Φ38-42mm

    14

    Cable Protector 3-1/2F11/34

    3-1/2"

    Flat

    11mm SQUARE

    15

    Cable Protector 3-1/2F16-19/60

    3-1/2"

    Flat

    16-19mm SQUARE

    16

    Cable Protector 3-1/2F19-23/70

    3-1/2"

    Flat

    19--23mm SQUARE

    17

    Cable Protector 4-1/2R6-8

    4-1/2"

    Round

    Φ6-8mm

    18

    Cable Protector 4-1/2R34-37

    4-1/2"

    Round

    Φ34-37mm

    19

    Cable Protector 4-1/2R38-42

    4-1/2"

    Round

    Φ38-42mm

    20

    Cable Protector 4-1/2F11/34

    4-1/2"

    Flat

    11mm SQUARE

    21

    Cable Protector 4-1/2F16-19/60

    4-1/2"

    Flat

    16-19mm SQUARE

    22

    Cable Protector 4-1/2F19-23/60

    4-1/2"

    Flat

    19--23mm SQUARE

    23

    Cable Protector 5-1/2R6-8

    5-1/2"

    Round

    Φ6-8mm

    24

    Cable Protector 5-1/2R34-37

    5-1/2"

    Round

    Φ34-37mm

    25

    Cable Protector 5-1/2R38-42

    5-1/2"

    Round

    Φ38-42mm

    26

    Cable Protector 5-1/2F11/34

    5-1/2"

    Flat

    11mm SQUARE

    27

    Cable Protector 5-1/2F11-16/56

    5-1/2"

    Flat

    11-16mm SQUARE

    28

    Cable Protector 5-1/2F16-19/70DUAL

    5-1/2"

    Flat

    19--23mm SQUARE

    29

    Cable Protector 7R6-8

    7"

    Round

    Φ6-8mm

    30

    Cable Protector 7F11/34

    7"

    Flat

    11mm SQUARE


    Application:

    • ESP cable
    • Subsurface ety valves control line
    • Chemical injection line
    • Permanent Gauges
    • Intelligent Wells
    • Fiber Optic
    • Coiled tubing

    Available:

    • Cross coupling protectors, Mid joint protectors
    • Materials: Carbon steel or stainless steel
    • Tubing sizes from 2 7/8” O.D. to 7” O.D.
    • Configurations for flat, round, or square cables, lines
    • Custom-made upon request
